Model Number	HX-24GC-12/24	LeadTime	Within 48 Hours: for regular stock models
Brand Name	WHOOSH / OEM		1-2 weeks: for OEM orders
Place of Origin	Hunan,China	Warranty	3 Years
MOQ	100PCS/Model	Sample Policy	Free samples 1-3PCS/Model
Customized Cost	Customized sticker/printing for free; Customized boxes for free >1000pcs each;
Payment Terms	T/T, Western Union,Money Gram	Supply Ability	22,000pcsper day
Aftersales	< 0.3% according to statistics collected; Replacement against defective products pictures or more application details if needed
Ports support	Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports
Price	With detailed inquiry, Accurate quotation can be emailed within 24 hours; Inquiry to: whooshpower@gmail.com

DC 24V1A LED Driver with 3 years warranty for LED light,24W LED Driver for airport, metro LED Light box lighting

Product Name

* 18mm wide 15.5mm thick Ultra Slim LED Driver 12V/24V 18W 24W 36W 48W 60W 72W 100W For LED light box and mini characters

* WHOOSH Quality 15mm Slim LED Driver 24V 100W, 3 years warranty, MTBF 30000 hours, 24V 4.17A LED driver for led lighting

* Hua Xin Ultra Slim 24V2.5A LED Driver with 3 years warranty for LED light project, airport, metro LED Light box lighting

1) Sepcifications

Model	Size/mm	Input	Output	Output Current	Warranty
HX-24GC-12	271×18×15.5	AC200~240V	DC 12V	2A	3 Years
HX-24GC-24	271×18×15.5	AC200~240V	DC 24V	1A	3 Years

2) Input Characteristics

Input Voltage: AC 180-264V

Input Frequency: 50/60Hz

Input Current:0.4A Max (full loaded at the lower limited of input voltage range)

Inrush Current:50 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current:0.25mA Max. At 240Vac input

3) Output Characteristics

1. Output Power

Voltage	Min. Load	Rated Load	Peak@10mS	Rated Output Power
DC12V	0A	4A	58W	48W
DC24V	0A	2A	58W	48W

Voltage	Min. Load	Rated Load	Line Regulation	Load Regulation
DC12V	0A	4A	±3%	±5%
DC24V	0A	2A	±3%	±5%

2. Line Regulation

Voltage	Ripple and Noise(Max.)
24V DC	300mV p-p

3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel47uF/0.1uF,crossed connected at testing point.

4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time: 400 mS Max.at 220Vac input and output Max load.

6. Efficiency: 84%Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 10% Max.When power supply at turn or turn off.

4) Protection Functions

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over Voltage Protection: lock when over voltage, must close and restart AC Source.

3. Over load protection: auto recovered when over current faults remove.

5) Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:
1. FCC class B rules
2. EN55022 class B rules
3. GB9254-1998,GB17625.1-2003

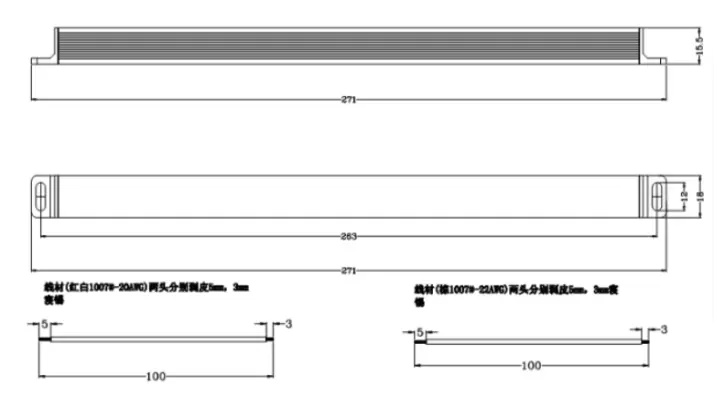

8) Structurer

9) OEM

Customize label and Inner box

10) Packing details

11) Complete Ultra slim HX-GC/CL Series

Model	Size L*W*H	Power	Input	Output	Cooling	Waterproof Level	Warranty	PCS/CTN	CTN Size/ CM	G.W (KG)/CTN
HX-24GC-12/24	271*18*15.5	24W	AC 200-240V	DC 12V 2A DC 24V 1A	No fan	IP43 For Indoor	3 Years	168	35*33*30	19.5
HX-36GC-12/24	293*18*15.5	36W	AC 200-240V	DC 12V 3A DC 24V 1.5A	No fan	IP43 For Indoor	3 Years	168	35*33*30	20.3
HX-48GC-12/24	293*18*15.5	48W	AC 200-240V	DC 12V 4A DC 24V 2A	No fan	IP43 For Indoor	3 Years	168	35*33*30	20.5
HX-60CL-12/24	353*18*15.5	60W	AC 200-240V	DC 12V 5A DC 24V 2.5A	No fan	IP43 For Indoor	3 Years	96	35*33*30	19.5
HX-72CL-12/24	293*18*15.5	72W	AC 200-240V	DC 12V 6A DC 24V 3A	No fan	IP43 For Indoor	3 Years	150	35*33*30	20.3
HX-100CL-12/24	413*18*15.5	100W	AC 200-240V	DC 12V 8.3A DC 24V 4.1A	No fan	IP43 For Indoor	3 Years	150	35*33*30	20.5

12) Production capacity and quality control

Our capacity	Built in 2004, 17 Years experience,
	10,000 square meters factory, 400+ employees,
	8 production lines, 20000pcs/day
	ISO9001:2015 Quality Management System Certified, 7S administration

13)Shipping

14)Company Information



Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.



--We are on the exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)

--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

FAQ
