Triac Dimmable Led Power Supply CC Dimming 15W 200-420mA LED Driver For Downlight
Triac Dimmable Led Power Supply CC Dimming 15W 200-420mA LED Driver For Downlight
Triac Dimmable Led Power Supply CC Dimming 15W 200-420mA LED Driver For Downlight
Triac Dimmable Led Power Supply CC Dimming 15W 200-420mA LED Driver For Downlight

Triac Dimmable Led Power Supply CC Dimming 15W 200-420mA LED Driver For Downlight

Dimming Mode Triac (Phase Cut) Output Current 420/390/360/330/ 290/260/230/200mA
Output Type Single Color Output Voltage 9-42V
Output Frequency 50/60Hz Input Voltage 180-264Vac
Output Power 15W Warranty 3 Years
Size 145*45*29.5mm IP Level IP43 For Indoor
No Load Voltage 47V Protection Over-load, Over-voltage, Over-current, Short-circuit
Type Constant Current
High Light 420mA LED Driver For Downlight, Dimmable LED Driver For Downlight, 15W Triac Dimmable Driver



Inquiry
Product Details

Model Number

HX15T-420MC1H-A2

Lead Time

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

3 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: whooshpower@gmail.com
Product Description
Product Specification

Triac Constant Current Dimming 15W 200-420mA LED Driver for downlight, dimmable led power supply

1) Product SUMMARY

HX15T-420MC1H-A2 is a constant current output mode LED driver. The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands to achieve a smooth dimming effect.

2) Applications

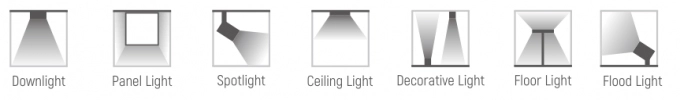

Application of Dimable LED Driver:  Downlight, Panel light, Spotlight, Ceililing Light, Decoration Light, Floor light, Flood light.

pic-1


1) Product Features

1. Single channel output, output current level selectable by DIP S.W.

2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer

4. Class 2 power supply. Full protective plastic housing

5. Dimmable range: 1%-100%

6. 8 levels of current selectable

7. Logarithimic output curve, smoother dimming, no flicker

8.  Protections: Short circuit, over load, over temperature



2) Technical Specifications

Model

HX15T-420MC1H-A2

Output

Current (mA)

420/390/360/330/290/260/230/200mA

Current Tolenrance

±5%

Ripper and Noise

200mVp-p

Voltage

9-28Vdc

Channel

±0.3%

No load ouput voltage

±0.5%

Input

AC Voltage range

180～264VAC

PC Factor

0.9@230VAC,Full load

Efficiency

≥86%

AC Current (max)

0.17Amax@230VAC

Standby Power

<0.5W

Inrush Current (Max)

Cold start 50A/240V AC

Leakage Current

<3.5mA/240VAC

Protections

Over-load

110%-130% of rated power

Short circuit

Protection mode: auto recovery after short circuit faults removed

Over load

Protection mode: auto recovery after short circuit faults removed

Over voltage

Protection mode: shot off output voltage, restart to recovery

Environment

Work Temp.

-25~40℃

Work Humidity

20%-90% RH no condensation

Storage Temp.

-25~80℃

Vibration resistance

revolution 280±10%, 45 mins,X.Y.Z three directions

Drop test

600mm

Surge

Common mode 4KV, different mode 2KV

Safety and EMC

Safety standard

Design by standard:GB9254-1998,GB17625.1-2003,

DALI standard

IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0

Withstand voltage

I/P-O/P 2KVAC I/P-FG 2KVAC O/P-FG 500VAC

Insulation resistance

I/P-O/P .I/P-FG .O/P-FG:＞100MΩ/500VDC/25℃/70%RH

EMC Eission

Design by standard: EN55022B, Class B

Harmonic current

Design by standard:GB17625.1; EN61000-3-2, -3 limitation requirement.

EMC Immunity

Design by standard: EN55024; EN61000-4-2,3,4,5,6,8,11

MTBF

≥30000 hours 40°C

Others

Working Temp

-20°C~50°C

Storage Temp. Humidity

-40°C~85°C, 20-90%Rh

tc

90°C

Material

flame-resistant PC

IP Rating

IP20

Lifetime

30000Hrs@tc:80°C

Warranty

3 Years Warranty

Swithcing Cycle

>15000 times

Packing

50PCS/Carton; 8.25kg/Carton; Carton Size: 319*254*136mm(L*W*H)

Dimension

145*45*29.5mmmm
3) Dimming Curve

pic-2

1) Cautions

1. The product shall be installed and serviced by a qualified person.

2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.

3. Good heat disspation will prolong the workign life of the controller. Please ensure good ventilation.

4. Please check if the output voltage and current of any LED power supplies used comply with the requirement of the product.

5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.

6. For safety consideration, PVC or rubber cord of 0.75-1.5mm² is recommended for input and output terminal(s). Flat power cord is not suitable. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.

7. If a fault occurs, please returen the product to your supplier. Do not attempt to fix this product by yourself.

2) Other similiar models



Model

Type

isolated/not isolated

Dimming Mode

Power

Input Voltage

PF

No load voltage

Output Voltage

Output Current

Output type

Product SizeL*W*H

HX10T-320MC1H-A1

Constant Current

isolated

DALI

10W

180-264V

0.6

47V

9-28V

350/320/290/260/230/200/170/140mA

Single

119*30.5*23.5mm

HX15T-420MC1H-A2

Constant Current

isolated

DALI

15W

180-264V

0.6

47V

9-42V

420/390/360/330/290/260/230/200mA

Single

145*45*29.5mm

HX30T-900MC1H-A2(with PFC function)

Constant Current

isolated

DALI

30W

180-264V

0.6

47V

9-42V

900/840/790/730/700/650/600/540mA

Single

145*45*29.5mm



pic-4

pic-5
