Temperature 3000K to 6000K Dimmable Power Supply DC24V 150W DALI 0-10V PUSH DIM Color

Home > Products > Temperature 3000K to 6000K Dimmable Power Supply DC24V 150W DALI 0-10V PUSH DIM Color

Temperature 3000K to 6000K Dimmable Power Supply DC24V 150W DALI 0-10V PUSH DIM Color
Temperature 3000K to 6000K Dimmable Power Supply DC24V 150W DALI 0-10V PUSH DIM Color
Temperature 3000K to 6000K Dimmable Power Supply DC24V 150W DALI 0-10V PUSH DIM Color
Temperature 3000K to 6000K Dimmable Power Supply DC24V 150W DALI 0-10V PUSH DIM Color

Temperature 3000K to 6000K Dimmable Power Supply DC24V 150W DALI 0-10V PUSH DIM Color


Output Current 0-5A Output Type Dual-Channel Constant Voltage Output
Output Voltage 24V Output Frequency 50/60Hz
Input Voltage 100-240Vac Output Power 300W
Warranty 3 Years Size 170*59*29mm
Material

Aluminum design

Protection Over-load, Over-voltage, Over-current, Short-circuit
OEM Yes
High Light

Dimming mode: DALI, 0-10V/1-10V/PUSH DIM/RX/PWM

Dimming range: 0.1%-100% deep dimming

Color temperature adjustment range: 3000K-6000K

Soft light-on







Product Details

Model Number

HX150ADP-24V2H

LeadTime

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

3 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: [email protected]



Product Description

Product Specification


1) Sepcifications

Model

Size/mm

Input

Output

Output Current

Warranty

HX150ADP-24V2H

170*59*29

AC 180-264V

DC24V

5A

2 Years

2) Input Characteristics

Input Voltage: AC180-264V

Input Frequency: 50/60Hz

Input Current: 0.8 A Max (full loaded at the lower limited of input voltage range)

Inrush Current:45AMax. Cold start at 264Vac input, with rated load and 25℃ ambient.

Ac Leakage Current:0.75mA Max. At 264Vac input





3)Product Features

l Dual-Channel Constant Voltage Output

Adjustable Color Temperature: From a warm 3000K to a cool 6000K.

00 Soft Start Feature: Gradually lights up to protect your eyes.

4 Full Load Output: Ensures consistent performance even with floating signals.

Flicker-Free Dimming: Smooth, flicker-free light adjustment from 0.1% to 100%.

Versatile Dimming/Color Control:

Compatible with DALI, 0-10V, 1-10V, PUSH, DIM, RX, PWM.



4) Applications

Application of Dimable LED Driver:  Downlight, Panel light, Spotlight, Ceililing Light, Decoration Light, Floor light, Flood light.





5) PUSH DIM/CCT function

Reset switch

Switch: short press

Brightness adjustment: short press twice to reach maximum brightness, long press to adjust brightness

Color temperature adjustment: short press 3 times to reach maximum color temperature, long press to adjust color temperature



The effective interval time of continuous short press is about 1S, too fast/too slow is invalid

Every time you long press, the color temperature or brightness will be adjusted in the opposite direction

When you switch on and off again, the light will return to the previously adjusted brightness/color temperature value

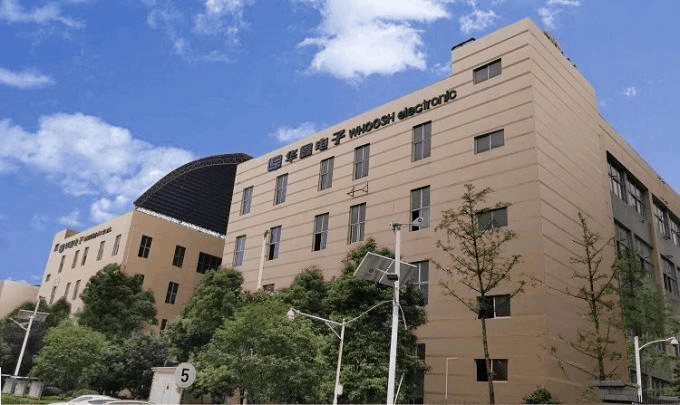

Factory Capacibility
1. Professional manufacturer
20 Years experience,  10,000 square meters factory, 400+ employees,  8 production lines
2. Scientific Management

ISO9001:2015 Quality Management System Certified, 7S administration

3. Independent R&D teams

10+ Engineer teams, innovative and independent R&D ability

1) 4. Advanced equipment

SMT plant,  wave-soldering machine,  Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.
