Product Details

Input	AC 100-240V, 50/60Hz	Output	DC 12V5A 60W
Warranty	3 Years	IP Level	IP67 Waterproof
Housing	Plastic Housing	OEM	YES
Protections	Short Circuit, Over Load, Over Voltage	Working Temperature	-20~40°C
Type	Constant Voltage, Single Output. Non Dimmable
High Light	5A IP67 Waterproof Power Supply, 60W 12V 5A LED Driver, Plastic Housing 12V 5A LED Driver

Product Description

12V5A 60W IP67 Waterproof Power Supply for Outdoor LED Sign LED Lighting and LED Strips in Plastic Housing

Product Description

Advantages

* AC input 100-240V, 50/60Hz

* DC output 12V 5A 60W

* Efficiency: >86%

* IP67 waterproof outdoor use, 100% OEM compatible, 3 years warranty;

* Constant voltage, single input and output design;

* Workable from -20 degree to 60 degree;

* Separated level for thermal dissipation;

* Protections: short circuit, over load and over voltage;

* Defective rate is less than 1% in 2 years.

* 100% full load burn-in test before delivery;

* NO MOQ, regular stock, quick delivery;

* Application: LED Sign, LED Advertising, LED Illumination, etc.

1. Output Characteristics

1.1 Output Power

Voltage	Min. Load	Rated Load	Peak@10mS	Rated Output Power
DC 12V	0A	5A	72W	60W

1.2 Line Regulation

Voltage	Min. Load	Rated Load	Line Regulation	Load Regulation
DC 12V	0A	5A	±3%	±5%

1.3 Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage	Ripple and Noise(Max.)
12V DC	200mV p-p

1.4 Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

1.5 Rise time:40 mS Max.at 220Vac input and output Max load.

1.6 Overshoot: 5% Max.When power supply at turn or turn off.

2. Protection Functions

2.1 Short circuit protection: auto recovered when short circuit faults remove.

2.2 Over current Protection: auto recovered when over current faults remove.

2.3 Over load protection: auto recovered when over current faults remove.

3. Test

Drop test

4. Safety Requirement

4.1 Safety Standard: Safety: Design by IEC60950 standard.

4.2 DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.

4.3 Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

5. EMI Requirement

Designed according to the following standards:
5.1 FCC class B rules
5.2 EN55022 class B rules
5.3 GB9254-1998,GB17625.1-2003

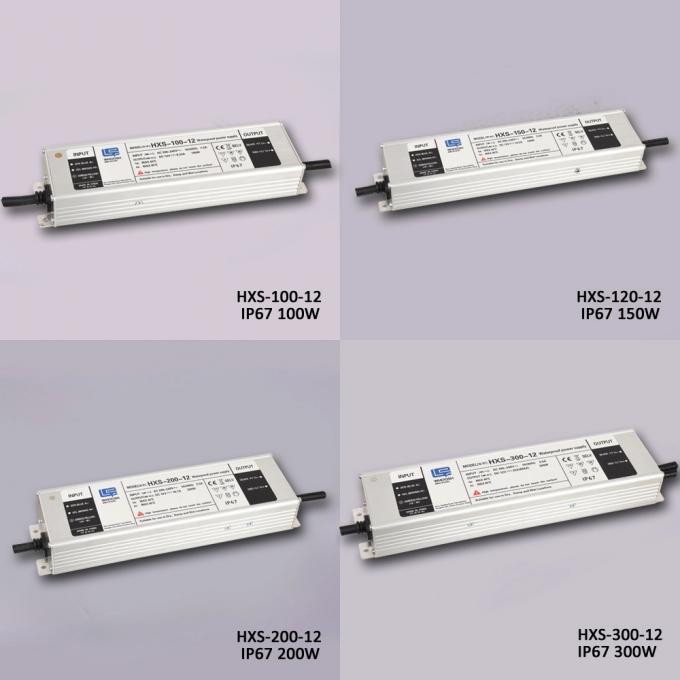

Related Products
