Constant Current Dimmable Power Supply 30W DC9-42V 900/840/790/730/700/650/600/540mA
| Dimming Mode | Triac (Phase Cut) | Output Current | 900/840/790/730/ 700/650/600/540mA |
|---|---|---|---|
| Output Type | Single Color | Output Voltage | 9-42V |
| Output Frequency | 50/60Hz | Input Voltage | 180-264Vac |
| Output Power | 30W | Warranty | 3 Years |
| Size | 145*45*29.5mm | IP Level | IP43 For Indoor |
| No Load Voltage | 47V | Protection | Over-load, Over-voltage, Over-current, Short-circuit |
| Type | Constant Current | ||
| High Light | Led Dimming Power Supply 30W, Downlight Phase Cut Dimming Power Supply, 900mA Led Power Supply | ||
Product Details
Model Number | HX30T-900MC1H-A2 | Lead Time | Within 48 Hours: for regular stock models |
Brand Name | WHOOSH / OEM | 1-2 weeks: for OEM orders | |
Place of Origin | Hunan,China | Warranty | 3 Years |
MOQ | 100PCS/Model | Sample Policy | Free samples 1-3PCS/Model |
Customized Cost | Customized sticker/printing for free; Customized boxes for free >1000pcs each; | ||
Payment Terms | T/T, Western Union,Money Gram | Supply Ability | 22,000pcsper day |
Aftersales | < 0.3% according to statistics collected; Replacement against defective products pictures or more application details if needed | ||
Ports support | Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports | ||
Price | With detailed inquiry, Accurate quotation can be emailed within 24 hours; Inquiry to: [email protected] | ||
Product Description
Product Specification
Phase Cute Dimming 30W 540-900mA LED Driver For Downlight, Dimmable Led Power Supply
1) Product SUMMARY
HX30T-900MC1H-A2 is a constant current output mode LED driver. The output current can be easily set via DIP switch.The driver supports leading edge (Triac) and trailing edge (ELV) dimmer, and can be compatible with the systems of various brands to achieve a smooth dimming effect.
2) Applications

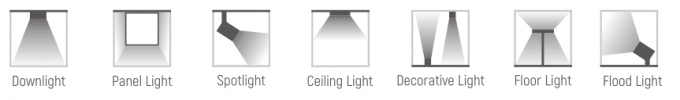

Application of Dimable LED Driver: Downlight, Panel light, Spotlight, Ceililing Light, Decoration Light, Floor light, Flood light.
3) Product Features
1. Single channel output, output current level selectable by DIP S.W.
2. Support Leading edge (Triac) and Trailing edge (ELV) dimmer
3. Built-in active PFC function
4. Class 2 power supply. Full protective plastic housing
5. Dimming effect smooth, no flicker
6. Protections: Short circuit, over load, over temperature
7. Suitable for indoor LED lighting application, such as down light, spotlights, panel light, and so on
4) Technical Specifications
| Model | HX30T-420MC1H-A2 | ||||
| Output | Current (mA) | 900/840/790/730/700/650/600/540mA | |||
| Current Tolenrance | ±5% | ||||
| Ripper and Noise | 200mVp-p | ||||
| Voltage | 9-42Vdc | ||||
| Channel | ±0.3% | ||||
| No load ouput voltage | ±0.5% | ||||
| Input | AC Voltage range | 180～264VAC | |||
| PC Factor | 0.9@230VAC,Full load | ||||
| Efficiency | ≥86% | ||||
| AC Current (max) | 0.17Amax@230VAC | ||||
| Standby Power | <0.5W | ||||
| Inrush Current (Max) | Cold start 50A/240V AC | ||||
| Leakage Current | <3.5mA/240VAC | ||||
| Protections | Over-load | 110%-130% of rated power | |||
| Short circuit | Protection mode: auto recovery after short circuit faults removed | ||||
| Over load | Protection mode: auto recovery after short circuit faults removed | ||||
| Over voltage | Protection mode: shot off output voltage, restart to recovery | ||||
| Environment | Work Temp. | -25~40℃ | |||
| Work Humidity | 20%-90% RH no condensation | ||||
| Storage Temp. | -25~80℃ | ||||
| Vibration resistance | revolution 280±10%, 45 mins,X.Y.Z three directions | ||||
| Drop test | 600mm | ||||
| Surge | Common mode 4KV, different mode 2KV | ||||
| Safety and EMC | Safety standard | Design by standard:GB9254-1998,GB17625.1-2003, | |||
| DALI standard | IEC 62386-101: 2014, IEC 62386-102: 2014; IEC 62386-207: 2009, DALI 1.0 | ||||
| Withstand voltage | I/P-O/P 2KVAC I/P-FG 2KVAC O/P-FG 500VAC | ||||
| Insulation resistance | I/P-O/P .I/P-FG .O/P-FG: ＞100MΩ/500VDC/25℃/70%RH | ||||
| EMC Eission | Design by standard: EN55022B, Class B | ||||
| Harmonic current | Design by standard:GB17625.1; EN61000-3-2, -3 limitation requirement. | ||||
| EMC Immunity | Design by standard: EN55024; EN61000-4-2,3,4,5,6,8,11 | ||||
| MTBF | ≥30000 hours 40°C | ||||
| Others | Working Temp | -20°C~50°C | |||
| Storage Temp. Humidity | -40°C~85°C, 20-90%Rh | ||||
| tc | 90°C | ||||
| Material | flame-resistant PC | ||||
| IP Rating | IP20 | ||||
| Lifetime | 30000Hrs@tc:80°C | ||||
| Warranty | 3 Years Warranty | ||||
| Swithcing Cycle | >15000 times | ||||
| Packing | 50PCS/Carton; 8.25kg/Carton; Carton Size: 319*254*136mm(L*W*H) | ||||
| Dimension | 145*45*29.5mmmm | ||||
5) Dimming Curve
6) Cautions
1. The product shall be installed and serviced by a qualified person.
2. This product is non-waterproof. Please avoid the sun and rain. When installed outdoors, please ensure it is mounted in a water proof enclosure.
3. Good heat disspation will prolong the workign life of the controller. Please ensure good ventilation.
4. Please check if the output voltage and current of any LED power supplies used comply with the requirement of the product.
5. Please ensure that adequate sized cable is used from the controller to the LED lights to carry the current. Please also ensure that the cable is secured tightly in the connector.
6. For safety consideration, PVC or rubber cord of 0.75-1.5mm² is recommended for input and output terminal(s). Flat power cord is not suitable. Ensure all wire connections and polarities are correct before applying power to avoid any damages to the LED lights.
7. If a fault occurs, please returen the product to your supplier. Do not attempt to fix this product by yourself.
7) Other similiar models
| Model | Type | isolate d/not isolated | Dimming Mode | Power | Input Voltage | PF | No load voltage | Output Voltage | Output Current | Output type | Siz eL*W*H |
| HX10T-320MC1H-A1 | Constant Current | isolated | DALI | 10W | 180-264V | 0.6 | 47V | 9-28V | 350/320/290/260 /230/200/170/140mA | Single | 119*30.5*23.5 |
| HX15T-420MC1H-A2 | Constant Current | isolated | DALI | 15W | 180-264V | 0.6 | 47V | 9-42V | 420/390/360/330 /290/260/230/200mA | Single | 145*45*29.5 |
| HX30T-900MC1H-A2 | Constant Current | isolated | DALI | 30W | 180-264V | 0.6 | 47V | 9-42V | 900/840/790/730 /700/650/600/540mA | Single | 145*45*29.5 |
