60W DC 24V Dimmable LED Power Supply for intelligent LED lights

Home > Products > 60W DC 24V Dimmable LED Power Supply for intelligent LED lights

60W DC 24V Dimmable LED Power Supply for intelligent LED lights
60W DC 24V Dimmable LED Power Supply for intelligent LED lights
60W DC 24V Dimmable LED Power Supply for intelligent LED lights
60W DC 24V Dimmable LED Power Supply for intelligent LED lights
60W DC 24V Dimmable LED Power Supply for intelligent LED lights
60W DC 24V Dimmable LED Power Supply for intelligent LED lights
60W DC 24V Dimmable LED Power Supply for intelligent LED lights
60W DC 24V Dimmable LED Power Supply for intelligent LED lights

60W DC 24V Dimmable LED Power Supply for intelligent LED lights


Output Current 5A Output Type Single
Output Voltage 12V Output Frequency 50/60Hz
Input Voltage 176-264Vac Output Power 60W
Warranty 3 Years Size 180×46.5×30mm
Material Black Aluminum Housing IP Level IP20 For Indoor
OEM Yes Protection Over-load, Over-voltage, Over-current, Short-circuit
High Light WHOOSH Dimmable LED Power Supply, 60W Driver LED 12V Dimmable, 60Amps Driver LED 12v Dimmable





Product Details

Model Number

HX-60TGL-12/24

Lead Time

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

3 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: [email protected]

Product Description
Product Specification
Dimmable LED power supply 60W for intelligent LED lighting projects
1) Sepcifications
Model Size/mm Input Output Output Current Warranty
HX-60TGL-12 180×46.5×30 AC 176~264V DC 12V 5A 3 Years
HX-60TGL-24 180×46.5×30 AC 176~264V DC 24V 2.5A 3 Years
2) Input Characteristics

Input Voltage: AC 176-264V

Input Frequency: 50/60Hz

Input Current: 1.8A Max (full loaded at the lower limited of input voltage range)

Inrush Current: 60 Amps Max. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current: 3.5mA Max. At 264Vac input

3) Output Characteristics

1. Output Power

Voltage Min. Load Rated Load Peak@10mS Rated Output Power
DC 0-12V 0A 5A 72W 60W

2. Line Regulation

Voltage Min. Load Rated Load Line Regulation Load Regulation
DC 0-12V 0A 5A ±3% ±5%

3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage Ripple and Noise(Max.)
12V DC 200mV p-p

4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time:400 mS Max.at 220Vac input and output Max load.

6. Efficiency: 89% Min, At220Vac input voltage and full load calculation efficiency.

7. Overshoot: 5% Max.When power supply at turn or turn off.

4) Protection Functions

1. Short circuit protection:   auto recovered when short circuit faults remove.

2. Over Voltage Protection:  Hiccup mode

3. Over load protection:   auto recovered when over current faults remove.

5) Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6)  Safety Requirement

1. Safety Standard: Safety: Design by IEC60950 standard.

2. DIELECTRIC STRENGTH Hi-Pot:
Primary to secondary:1200Vac/10mA/60S for type test.
Primary to case:1200Vac/10mA/60S for type test.
Secondary to case:300Vac/10mA/60S for type test.

3. Iusulation resistance:Primary to secondary:10MΩ min at 500V DC.

7) EMI Requirement

Designed according to the following standards:

1. FCC class B rules

2. EN55022 class B rules

3. GB9254-1998,GB17625.1-2003

8) OEM

Customize label and Inner box

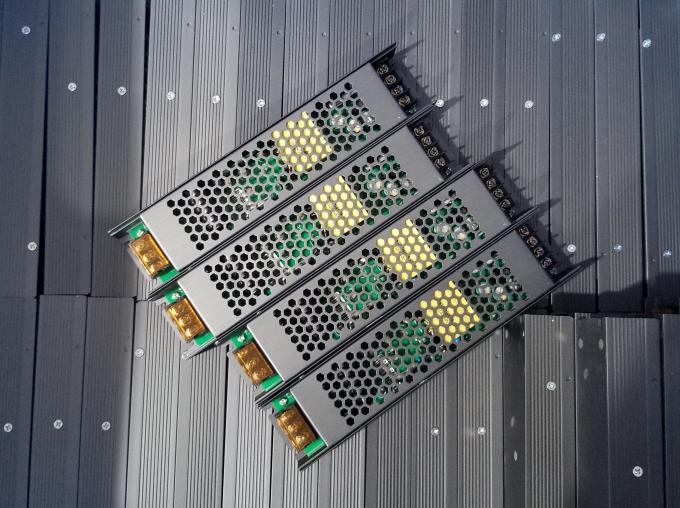

9) More product pictures

pic-1



Factory Capacibility
1. Professional manufacturer

17 Years experience,  10,000 square meters factory, 400+ employees,  8 production lines

2. Scientific Management

ISO9001:2015 Quality Management System Certified, 7S administration

3. Independent R&D teams

10+ Engineer teams, innovative and independent R&D ability

4. Advanced equipment

SMT plant,  wave-soldering machine,  Semi-auto assembling, EMC lab, Test Lab, Ageing room etc.
