24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process

Home > Products > 24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process

24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process
24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process
24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process
24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process
24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process
24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process
24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process
24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process

24V 300W  long-lasting Switching power supply Brand new metal shell and semi-glue filling process


Input

AC200-240V, 50/60Hz

Output

DC 24V 8.75 A

300W

Warranty

2Years

OEM

YES

Housing

AluminumHousing

Working Temperature

-20~40°C

Protections

Short Circuit, Over Load, Over Voltage



Type

Constant Voltage, Single Output.



High Light

Brand new components

Output flicker-free, long-lasting and constant light color

Brand new metal shell and semi-glue filling process for better heat dissipation

The product has high efficiency and low loss

SC, OV, OL protections



Product Details

Model Number

HX-300BLG-24

LeadTime

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

2 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;
Inquiry to: whooshpower@gmail.com





Product Description
Product Specification
1) Sepcifications

Model

Size/mm

Input

Output

Output Current

Warranty

HX-300BLG-24

230*49.5*27.5

AC 180-240V

DC24V

8.75A

2 years


2) Input Characteristics

Input Voltage: AC180-240V

Input Frequeny: 50/60Hz

Input Current: 8.75A Max (full loaded at the lower limited of input voltage range)

Inrush Current:57AMax. Cold start at 240Vac input, with rated load and 25℃ ambient.

3) Output Characteristics

1. Output Power

Voltage

Min. Load

Rated Load

Peak@10mS

Output power

24A

0A

 8.75A

360W

300W



2. Line Regulation

Voltage

Min. Load

Rated Load

Line Regulation

Load Regulation

24A

0A

8.75 A

±3%

±5%



3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage

Ripple and Noise(Max.)

24V

300mV p-p



4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time: 10mS Max.at 240Vac input and output Max load.

6. Efficiency: 89%Min; At 220Vac input voltage and full load calculation efficiency.

7. Overshoot: 10% Max. When power supply at turn or turn off.



4) Protection Functions:

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over current Protection: auto recovered when over current faults remove.

3. Over load protection: auto recovered when over current faults remove.

5)Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

1. Safety Standard: GB4943-2022,UL1024
2.Insulation resistance: 100MΩ min at 500V DC
7) EMI& EMCRequirement

Designed according to the following standards:

1. EN55022B,Class B

2. GB17625.1; EN61000-3-2,-3

3. EN55024; EN61000-4-2,3,4,5,6,8,11

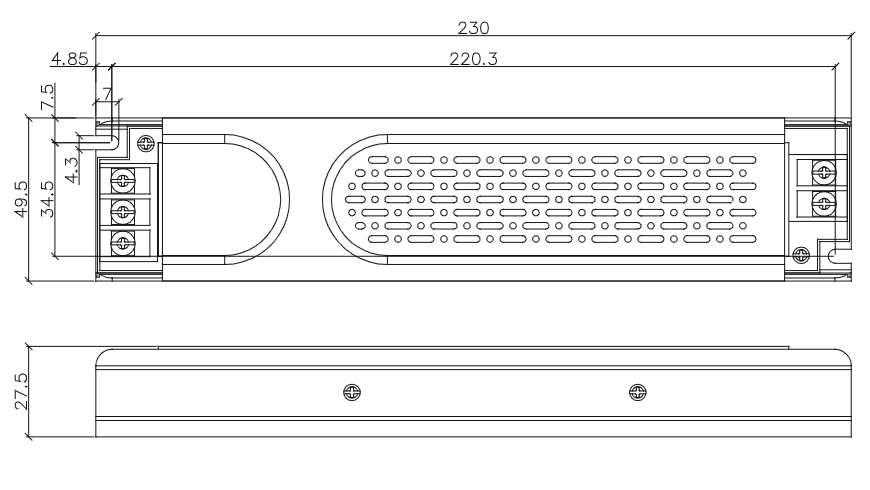

8)Structurer


HX-BLG Rainproof Power Supply Series

Model

Size(mm)

Efficiency(≥)

Input

Output

Power

HX-60BLG-24

247*35.4*21.3

≥88%

180-264VAC

24V/1.75A

60W

HX-100BLG-24

157*35.4*21.3

≥88%

180-264VAC

24V/2.9A

100W

HX-200BLG-24

193.5*49.5*27.5

≥88%

180-264VAC

24V/5.8A

 200W

HX-300BLG-24

230*49.5*27.5

≥89%

180-264VAC

24V/8.75A

300W

HX-400BLG-24

230*64.5*30.5

90%

180-264VAC

24V/11.6A

400W



9) OEM

Customize label and Inner box

 10) Packing details Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).





11)Shipping

12)Company Information

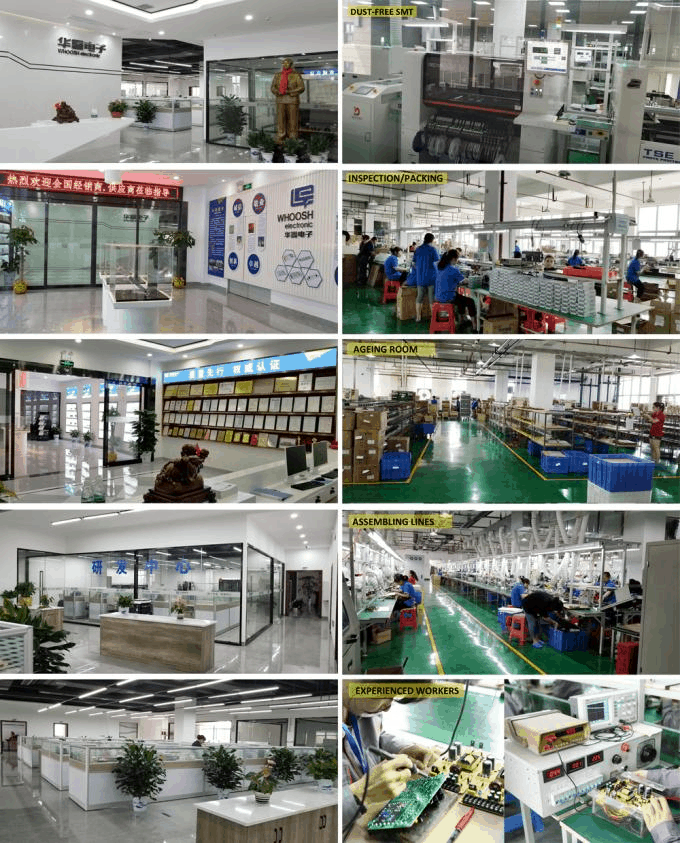

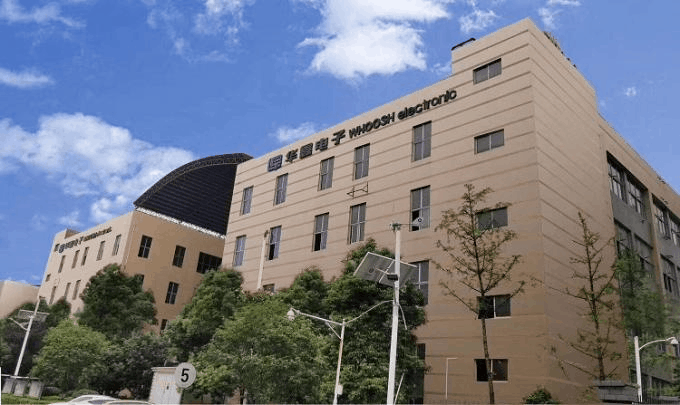

Hunan Huaxin (WHOOSH) Electronic Technology Co., Ltd.has specialized in LED AC to DC power supply manufacturing since 2004, located in Hunan province, in the central south of China. We have 6 production lines and 400 people in factory with 10,000 square meter, including the R&D team.

We have manufactured all kinds of LED power supply used for LED Sign, LED Advertising, LED Illumination, LED Screen, LED lightbox; CCTV Device, Industial Automation Facility, Electronic Communication Device, Medical Care Equipment, etc.

WHOOSH has passed ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.

What's more, defective rate is less than 1% within 2 years.



--We are on exhibitions!

Each year we have 3-4 domestic exhibitions (ISLE, SIGN CHINA, SHANGHAI LIGHT EXPO etc.) and 2-3 overseas exhibitions ( Asian, Middle East etc.)



--Honor & Certifications:

ISO9001:2015 (certified by SGS) Quality Management System, Korea KC certification, EU CB Certification, CE, ROHS, CCC, EMS, LVD, IP67 Waterproof Level Certifications etc.



FAQ

Q: Can I get samples?

A: Yes, 1pc is available if needed.



Q: What’s your MOQ?

A: Normally the MOQ for commercial order is 1 carton for each kind of product.

However, 1pc can be available to support for your trail order, welcome to inquiry.



Q: Is there any discount?

A: Of course. Price is based on your quantity. We are committed to supplying best price for every customer.



Q: How about delivery time?

A: 1-25days which depends on detail items and quantity.



Exporting port:Guangzhou, Shenzhen, Shanghai, Yiwu, Lianyungang, Tashkent, etc. Guangzhou is the nearest port.



After-sales service:

A strong factory since 2004 and 400 employees, top 5 biggest manufacturer in China to support the aftersales.

We will always behind you to support you with less than 1% natural defective rate.

Payment term:T/T, Western Union, PayPal, or negotiate when order.

Any needs, we are always here for you.
