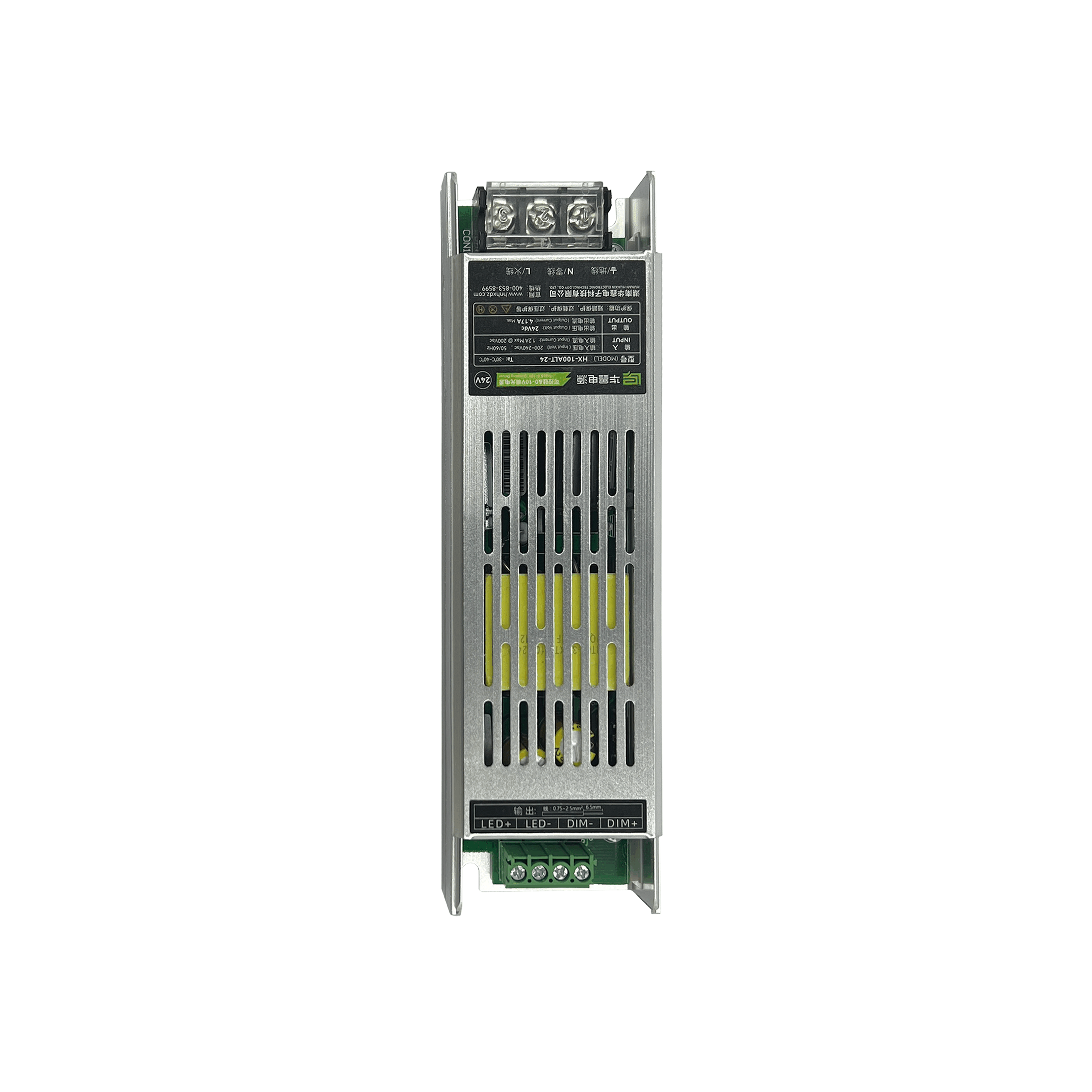

0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming
0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming
0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming
0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming
0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming
0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming
0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming
0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming

0-10V /triac selectable 100W 24V Triac LED Power Supply Comply 0.1%-100% depth of dimming


Output Current

0-4.17A

Output Type

Single

Output Voltage

24V

Output Frequency

50/60Hz

Input Voltage

180-264Vac

Output Power

150W

Warranty

2 Years

Size

171*48*30mm

Material

Metal shell

grounding design

IP Level

IP20 For Indoor

OEM

Yes

Protection

Over-load, Over-voltage, Over-current, Short-circuit

High Light

Dimming mode: Triac/0-10V/1-10V/RX/PWM

Dimming range: 0.1%-100% deep dimming

Suitable for narrow space



Product Details

Model Number

HX-100ALT-24

LeadTime

Within 48 Hours: for regular stock models

Brand Name

WHOOSH / OEM

1-2 weeks: for OEM orders

Place of Origin

Hunan,China

Warranty

3 Years

MOQ

100PCS/Model

Sample Policy

Free samples 1-3PCS/Model

Customized Cost

Customized sticker/printing for free; Customized boxes for free >1000pcs each;

Payment Terms

T/T, Western Union,Money Gram

Supply Ability

22,000pcsper day

Aftersales

< 0.3% according to statistics collected;

Replacement against defective products pictures or more application details if needed

Ports support

Guangzhou, Shenzhen, Shanghai, Ningbo, Yi Wu, other mainland ports

Price

With detailed inquiry, Accurate quotation can be emailed within 24 hours;

Inquiry to: whooshpower@gmail.com



Product Description

Product Specification


1) Sepcifications

Model

Size/mm

Input

Output

Output Current

Warranty

HX-100ALT-24

171*48*30

AC 180-264V

DC24V

4.17A

2 Years

2) Input Characteristics

Input Voltage: AC 200-264V

Input Frequency: 50/60Hz

Input Current: 2.0 A Max (full loaded at the lower limited of input voltage range)

Inrush Current:45AMax. Cold start at 240Vac input, with rated load and 25℃ ambient.

Ac Leakage Current:2mA Max. At 240Vac input

3) Output Characteristics

1. Output Power

Voltage

Min. Load

Rated Load

Peak@10mS

Output power

24V

0A

4.17A

120W

100W



2. Line Regulation

Voltage

Min. Load

Rated Load

Line Regulation

Load Regulation

24V

0A

4.17A

±3%

±5%



3. Ripple and Noise

Under nominal voltage and nominal load,the ripple and noise are as follows when measure with Max.Bandwidth of 20MHz and Parallel 47uF/0.1uF,crossed connected at testing point.

Voltage

Ripple and Noise(Max.)

24V

200mV p-p

4. Turn on delay time: 2Second Max.at 220Vac input and output Max.load.

5. Rise time: 80mS Max.at 240Vac input and output Max load.

6. Efficiency: 87%Min, At 220Vac input voltage and full load calculation efficiency.

4) Protection Functions:

1. Short circuit protection: auto recovered when short circuit faults remove.

2. Over current Protection: auto recovered when over current faults remove.

3. Over load protection: auto recovered when over current faults remove.

5)Test

Drop test, Salt Spray Test, Surge test, Ageing test, lightning test, Temperature Variation test etc.

6) Safety Requirement

EMC/EMI

1.Safety Standard:

Safety: Design by: GB4943-2001,UL1012 Standard

2.Insulation resistance:100MΩmin at 500V DC
7) EMI Requirement

Designed according to the following standards:

1. EN55022B,ClassB

2. GB17625.1;EN61000-3-2,-3

3. EN55024;EN61000-4-2,3,4,5,6,8,11

 8Structurer


HX-ALTSeries Specification

Model No.

Size/MM

Efficiency

Output current

PF

Output Volt

Input Volt

HX-60ALT-24

150*48*30

≥86.5%

2.5A

0.55

24V DC

200264V

HX-100ALT-24

171*48*30

≥87%

4.17A

0.55

24V DC

200264V

HX-200ALT-24

228*48*30

≥90%

8.33A

0.55

24V DC

200264V

HX-300ALT-24

232*63*30

≥90%

12.5A

0.6

24V DC

200264V



9) OEM

Customize label and Inner box

 10) Packing details

Pack in a big brown carton outside and a box or a bubble bag per piece inside. (Or negotiate when order).




11)Shipping
